MobilGate-127 - Economical gate controller for 128 phone numbers
- Designed mainly for small companies and for industries
- For gate, door, garage and barrier control
- Applicable in companies, offices and industrial applications
- Also for general IT remote purposes
- Miniature relay output controlled by phone call
- 10-50V DC or AC power supply

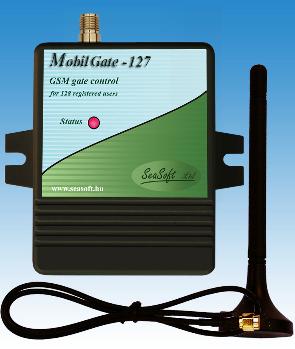

- With GSM straight antenna or with magnetic stand aerial
- Provider independent module with microSIM card
- Free downloader software via PC's USB port
The MobilGate-127 is an industrial GSM module developed for remotely controlling doors, garage doors and barriers a low current relay output. The relay output allow the configuration of 127 phone numbers to control the gates remotely with a free call based on caller ID recognition. Relay operated with a free call can be triggered for pre-determined duration. The recognition of max. 128 phone numbers allows to set up entitlements for 128 users. The module's power voltage is 10-40V AC or DC which can be supplied by a power adapter. Its setup can be configured with our downloader software via USB port, or by sending several configuration SMS remotely. The module has a 4-character passcode in order to prevent any unauthorized personnel to disable or reconfigure the module. The module has internal timer, thus the output relay is triggered for a configured time when calls occur, which can be max of 9999 secs (about 3 hours). After the given time expires, the relays turn off auto-matically and return to their original state.
The MobilGate-127 GSM gate controller is equipped with a carrier-independent industrial GSM module; thus it is ready for an SMS communication with a prepaid or subscription SIM card without PIN code. The data which is necessary for operation, for instance SMS number of the service provider, users’ numbers, etc. can be configured by downloading them into the device or sending an SMS with a certain content. The detailed messages provide possibility to be able to easily identify the appropriate device in case of having more than one. Output status can be queried by sending a corresponding SMS. Configuration SMSs are confirmed after reception, and and an correct configuration SMS will result in an error message. The module does not discard the previously set configuration, including modul's PIN, phone numbers, etc. after turning the it off. After power-up, although timer parameters are deleted, but the module continues its operation where it stopped. The module checks the GSM modem regularly and turns it off in case of network or signal problems, then turns it back, connects to the network again, restoring itself into operating state.

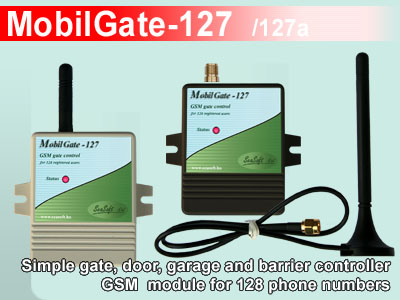

The Mobilgate-127 GSM gate control module can be purchased in a package with downloader software and built-in straight aerial. It can be equipped either with smal, rectangular dual-band stick antenna or with externa magnetic antenna equipped with RG174 SMA-connector. The auxiliary magnetic antenna version is called MobilGate-127a.

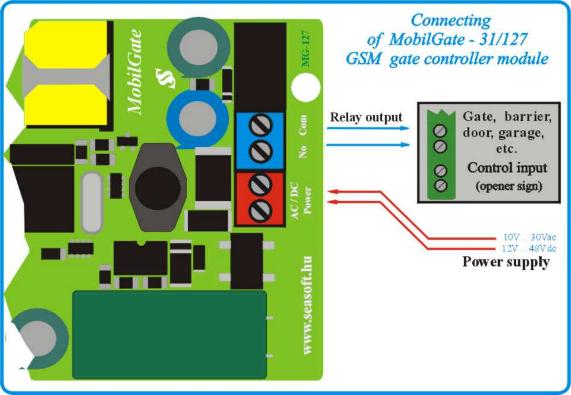

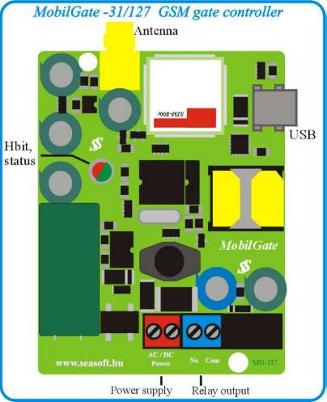

The power connection needs 10-40V DC or AC supply voltage. It has low voltage low current normally open miniature relay output and their max load is 48V and 1A. The NO and COM points of the relays are wired out. The GSM modem has a screwed SMA aerial connector and a small-sized straight pole aerial or an aerial magnetic stand aerial. The power input of the GSM gate controller module is protected against reverse polarity and it is equipped with 500mA multifuse.
The data which is necessary for operation, for instance SMS number of the service provider, users’ numbers, output and input names etc. can be configured by downloading them into the device or sending an SMS with a certain content. In the case there is any change of the inputs, the module name, module number, the appropriate input name and status are also sent via SMS. The detailed messages provide possibility to be able to easily identify the appropriate device in case of having more than one. Input and output status with every parameter can be queried by sending a corresponding SMS. Configuration SMSs are confirmed after reception, and and an correct configuration SMS will result in an error message.
The MobilGate-127 module does not discard the previously set configuration, including input names, output status, phone numbers, etc. after turning the it off. After power-up, although timer parameters are deleted, but the module continues its operation where it stopped. The module checks the GSM modem regularly and turns it off in case of network or signal problems, then turns it back, connects to the network again, restoring itself into operating state.
MobilGate-127 can be configured with computer or notebook via USB-port by using our free software. A microSIM card that is able to send SMS and it is not protected with PIN code has to be isrequired for Windows XP, Windows-7, Windows-8 or any newer operation system. After driver installation, the next step is inserted into the module. When the device is connected to the USB-port, the module driver has to be installed from the CD or it can be downloaded from www.seasoft.hu . Installing the gate controller module driver the serial port configuration. It starts by clicking the Set Port button. Windows registers the device and assigns it to a COM-xx port. The software indicates module version and enters configuration mode. The user can configure MobilGate-127 controller freely in configuration mode. If the software cannot find the port of the device indicated on the picture, it has to be identified manually in Windows by the user's manual.

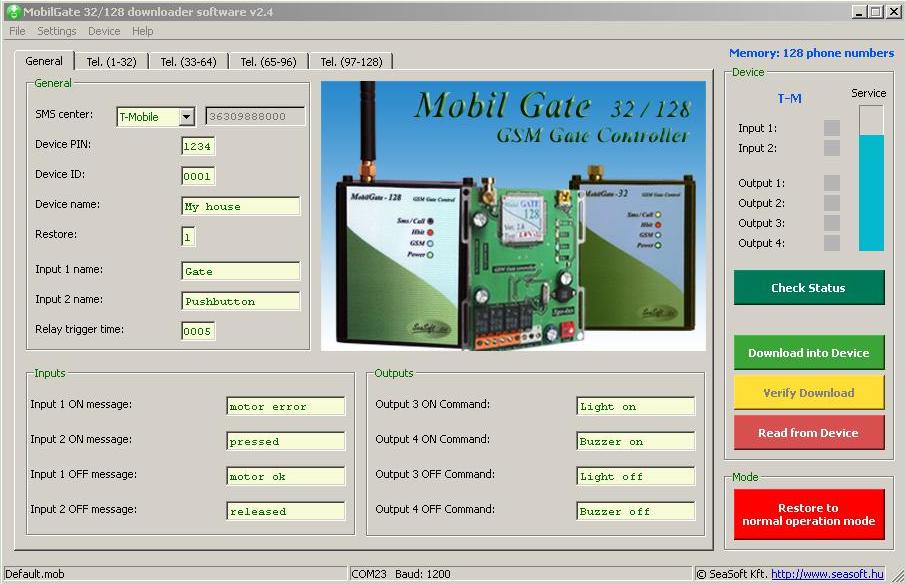

The download software of MobilGate-127 offers a fast and simple way to configure the device. Menus appearing on the screen allows the access to the most important functions. Not only down-loading the configuration into the device is possible, but also the actual configuration can be read from gate controller. If the data has been modified since the last download i.e. by SMSs, it can be read and checked. It is advised to always start configuration with a file named Default.mob. It is easier to edit uploaded data without making any mistake than creating new values. Loading data into the device can be started by clicking the green Dowload into Device button.
Considering that MobilGate-127 is a complicated device, it is advised to configure it with the download software. Simple changes (e.g. adding or removing a phone number) can be done remotely via SMS. It is necessary to know the memory map of the device for configuration. The module confirms every SMS command with a response SMS. The confirmation SMS shows the changed parameter and the actual status of inputs and outputs. If the given command is wrong, the module cannot recognize it, thus an SMS with the content of Error! will be sent back. Please configure the SMS center number first during configuration otherwise the device will not respond for certain configuration commands and will not operate correctly.
Further notes :
The device can be operated with any microSIM card
The received SMS-s from unknown senders, including the ones sent from the carrier are forwarded to the first telephone number.
If the balance of the pre-paid SIM card reaches zero, the device is not able to communicate further. It is advised to check the balance of the SIM card regularly.
After downloading configuration, the device will restart and it will be operational after registering to a GSM network.
MobilGate modules can operate only with SIM cards that are not protected with SIM PIN which is not equal to the module's PIN number.
Before use of device the SIM PIN has to be removed from the SIM card.
Show caller ID must be enabled on pre-paid SIM cards. This can be performed by contacting the carrier’s customer service.
Call-forwarding and SMS reminders about missed calls sent by the carrier must be disabled on the SIM card.
|Power supply:||10–40 V DC or AC|
|Max. Current:||290 mA|
|Stdby (relay off):||27 mA|
|Stdby (relay on):||35 mA|
|Operating temperature:||-30 ... +70 C|
|GSM band:||dual band|
|PC board L:||65 mm|
|PC board H:||44 mm|
|Enclosure type:||Plastic, IP-54|
