MobilGate-Nano   - Economical price GSM gate controller for 8 dedicated users

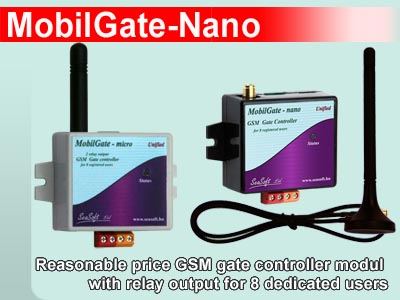

mobilgate-nano családi kapunyitó

- Gate, door, parking and barrier controller mainly for family use

- Simple to use, effordable price, easy to program

- Useful in flats and houses, in weekend houses and bungalows

- Opening gates of houses without keys

- Low voltage signal relay output to control by phone call

- Configurable relay switch time, 1 input for SMS sending, editable SMS

- 10-30V AC or DC power supply

- With GSM straight antenna or with magnetic stand aerial

- Provider independent module with nanoSIM card

      The MobilGate-Nano is an industrial-grade GSM device that is suitable for mainly home applications to control and open doors, barriers, gates and garage doors. The module has a low-current relay output. The relay can be operated by the users by initiating voice calls to the devices. The device recognizes 8 different telephone numbers and operates based on caller-ID recognition. It requires 10-35Vdc or 10-24Vac voltage and draws min. 500mA current. The received SMS-s, including carrier messages, can be forwarded to a pre-configured phone number. The device is capable of sending status signals of its operation, thus the operation of the device can be regularly controlled. The relay can be programmed to operate in monostable mode (trigger for a fixed duration, then release) or bistable mode (triggers on/off indefinitely, operates as a normal switch). In monostable mode, a voice call initiated to the device triggers the relay, then the module ends the call (user busy signal). Then, the module automatically switches the relay after the pre-defined duration is elapsed. In bistable mode, a voice call initiated to the device triggers the relay indefinitely after approximately the 3rd ringing, then the module ends the call (user busy signal). The next voice call initiated to device switches off the relay after approximately the 1st ringing, then the module ends the call.

      The output relay is low-current, common-circuit "NO"-type, with maximum load of 48V/1A. The device is manufactured in two different editions. The MobilGate-Nano with gray enclosure equips a built-in antenna. The module called MobilGate-Nano-a with black enclosure has an SMA connector that provides connectivity for external antennas (the package includes a magnetic antenna with 60 cm long cable), therefore the module can be mounted in metal enclosures without affecting signal strength.

      The MobilGate-nano GSM device can be configured quickly and conveniently with our free configuration software called "Unified" which can be downloaded from our website www.seasoft.hu . The device is carrier-independent and it is operational with any SIM card, including prepaid and subscription-based SIM cards. The module requires a nanoSIM card and it can be connected with a microUSB cable to a PC. With our configuration software, every user-parameter of the module can be freely and widely configured. After powering on the device and plugging in the USB cable, all Windows operating systems (Windows XP, Win-7, Win-8, and Windows-10) automatically recognize the connected device. Our universal software handles and configures all products from the MobilSwitch, MobilArm, MobilTherm, MobilGate and MobilCar product families.

      The MobilGate-Micro requires 10-35Vdc or 10-24Vac voltage and draws min. 500mA current. Its output relay is low-current, common-circuit "NO"-type, with maximum load of 48V/1A.

MobilGate Nano
Mobilgate-Nano-A
GSM kapunyitó modul
GSM garázs nyitó modul

       After the power on the LED lights yellow color for approximately 10 seconds. During this period, the GSM is initialized. While the module is searching and registering to a GSM net- work, the yellow LED blinks. In case of yellow blinking the module can be also under network communication (in SMS or in voice mode). After approximately 40 seconds of power on, the yellow blinking stops and turns into green. Normally it is blinking green color. The frequency of the blinking reflects the signal strength. More blinks within a period mean greater signal strength. In case of fast red blinking the module cannot find GSM network or antenna is faulty. It may also indicate the followings: SIM card error, SIM PIN is not disabled, SMS or voice modes are disabled on SIM card.

Unified szoftver

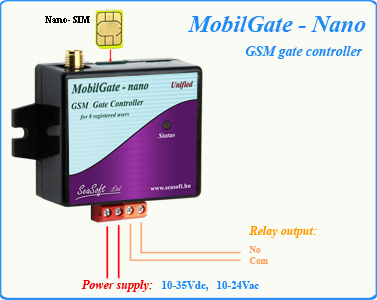

Mobilgate-nano bekötés
MobilSwitch nano GSM


      The module can be connected with a microUSB cable to a PC. With our configuration software, every user-parameter of the module can be freely and widely configured. After powering on the device and plugging in the USB cable, the Windows operating system automatically recognize the connected device. Our universal software handles and configures all of our products and product families.

      The MobilGate-Nano gate controller also can be programmed remotely with fixed-format SMS commands.

Specifikációk:


DC power supply:
10-35 Vdc
  Frequency:
850/900/1800/1900 MHz
AC power supply:
10-24 Vac
  Kommunikáció:
SMS, voice
Stdby current when relay on:
58 mA
  Aerial connector.:
SMA
Stdby current when relay off:
27 mA
  Type of aerial:
Built-in / magnetic stand
Maximal current:
185 mA
  Ambient temperature:
-30 ... +70 C




Size of enclosure (high)

55 mm

Size with aerial (high)

88 mm

Size of magnetic aerial:

110 mm

Width (with wings):

64 mm

Width of enclosure (without wings):

48 mm

Large of enclosure:

24 mm
