MobilSwitch-Micro   - GSM signalling and remote control modul

MobilSwitch-Micro GSM átjelző


- For switching, opening, startring, stopping, resetting, restarting functions

- Simple modul for home use, easy to install easy to fit anywhere

- can be useful at home or in garage, caravans, bungalow or in week-end house

- 2 digital inputs and 2 low voltage low current relay outputs

- 10-30V DC power supply

- With GSM stickt antenna or with magnetic stand aerial

- Carrier independent module device with microSIM card

- One of the smallest and simplest modul on market

- Free downloader softver via PC's USB port

       The MobilSwitch-Micro module is a general, industrial-grade GSM module, developed for remote signaling and remote control. It has 2 inputs which are activated by voltage-less (or voltage-free) contact, and it has 2 single-circuit relay outputs. The module can be programmed with its own software from any PC or notebook. The device notifies the users via pre-configured SMS-s and voice calls, and it has an optional acknowledging function. The relays can be triggered by user-configured SMS-s or free voice calls based on caller ID recognition.The relays can be configured to operate in monostable mode (after switching on, the relays are turned off automatically within a time interval) or bistable mode. (switching the relays on and off are performed with separate commands) The MobilSwitch-Micro can be programmed for maximum 8 phone numbers. It can be used as an independent GSM remote signaling, remote controlling device, either for industrial purposes or home applications, such as remote signaling and controlling security device. The power supply of the device has industrial input range of 10V-30V DC and it draws minimum 500mA current. The received SMS-s from the carrier can be forwarded to the user-configured telephone number, and the device operation can be checked with its built-in signal-of-operation function. The module has two variants: either with built-in dual-band antenna or RG-174 magnetic antenna with SMA connector.

       The MobilSwitch-Micro GSM device can be fully programmed and configured with our universal downloader software called "Unified" via a microUSB cable. After powering on the device and plugging in the USB cable, all Windows operating systems (Windows XP, 7, 8, and 10) automatically recognize the the connected device. Our universal software handles and configures all products from the MobilSwitch, MobilArm, MobilTherm, Mobilcar and MobilGate product families. The software automatically recognizes the type of the connected device and it shows its image.

       The device comes with an enclosure and carrier-independent GSM module. The built-in aerial variant is the MobilSwitch-Micro and the variant with external magnetic antenna is named MobilSwitch-Micro-a. The device comes with our free configuration software that can be down-loaded from website: www.seasoft.hu

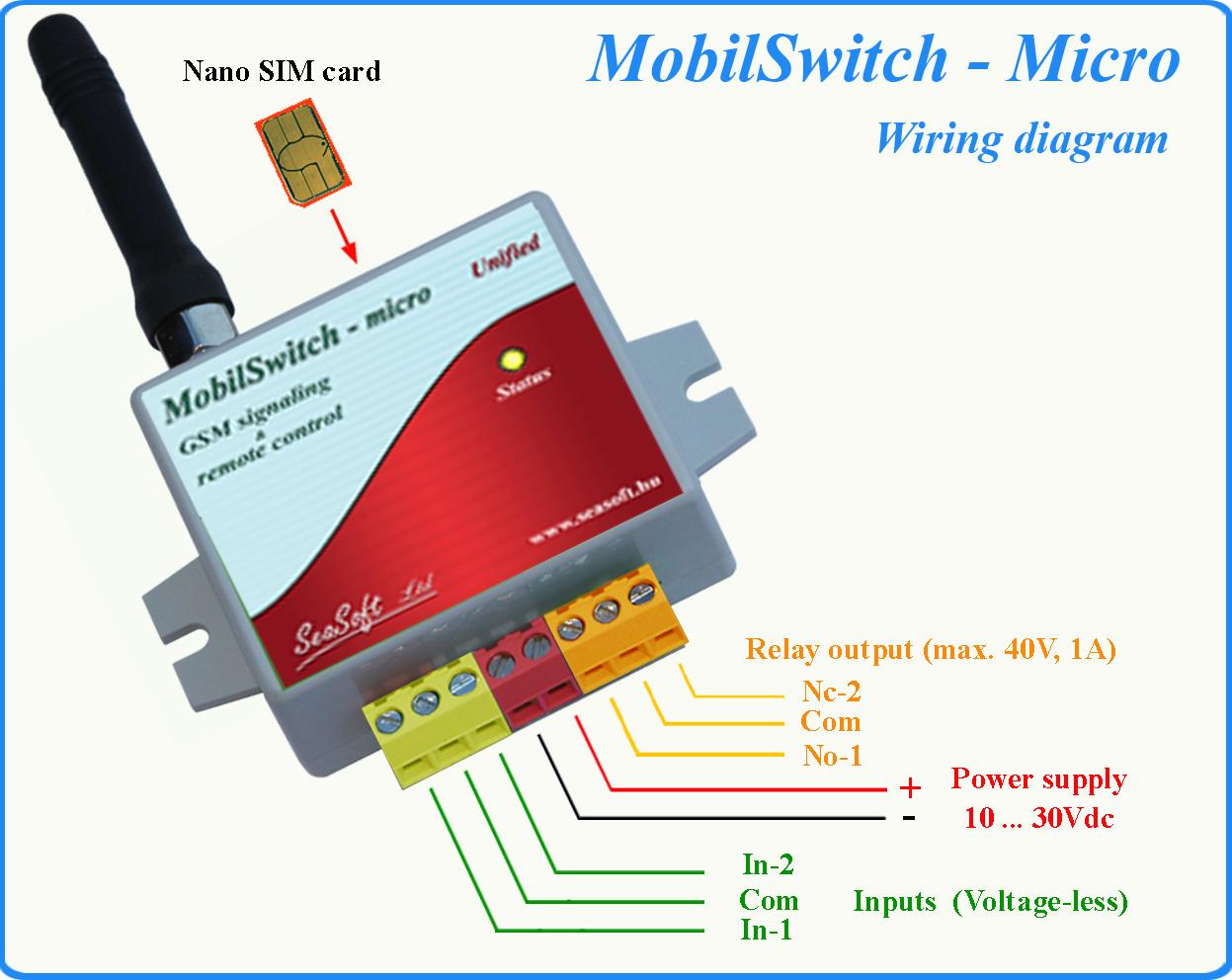

         The device requires +10-30V DC power supply with at least 500mA power supply connected to the red connectors which is equipped with polarity protection. The contact inputs are triggered with 0V, i.e. pulling them to ground. It is forbidden to connect more than +5V to the inputs in case they are driven by open-collector lines. The first relay output is a small-current "No"-type, the second relay output is small-current "Nc"-type. The maximum load of both outputs cannot exceed 1A at 48V. The inputs of the device are equipped with noise protection, however external voltage must not be applied to them. The inputs can be triggered with small-resistance (and preferably without contact-bouncing) contacts, switches and relays. The module is equipped with standard nanoSIM holder. The module can be programmed and configured with a microUSB cable.

GSM signalling
GSM remote control
GSM pager
SMS pager

       The Windows operating systems (Windows XP, 7, 8, and 10) automatically recognize the connected device and it shows its image. The status of the device, including the carrier information, status of the inputs and outputs can be queried by pressing the "Get Status" button. All the user parameters can be edited, however it is advised to keep the original format and change the factory values only when necessary. Please fill the configuration values with care and do not use accented or special characters. All telephone numbers must be given in the international telephone number format. The edited configuration can be saved to a file and loaded whenever necessary. The configuration data can be downloaded to and read from the device. The software displays a notification when the configuration was successful and shows an error message notification upon download or read failure..

Unified software
MobilSwitch micro

      The device can be programmed remotely with fixed-format SMS commands.


Specifications:


Range of power supply:
10-30 Vdc
  Frequency:
800/900/1800/1900 MHz
Lowest current consuption:
27 mA
  Communication:
SMS, voice
Current consuption when relays on:
46 mA
  Max. voltage on inputs:
+6 V max.
Mean consuption (24hours):
65 mA
  Aerial connector:
SMA
Max. conpuption:
170 mA
  Ambient temperature
-30 ... +70 C




Vertical size of enclosure:

55 mm

Vertical size with aerial:

88 mm

Vertical size of magnetic aerial:

110 mm
  Hor. size of enclosure (with wings):
64 mm

Horizontal size of enclosure:

48 mm

Enclosure Z size:

24 mm
