MobilSwitch-Nano-C   - DIN rail signalling and remote control modul

MobilSwitch-Nano-C GSM átjelző


- For industrial switching, startring, restarting, opening, stopping, resetting, functions

- Simple modul for general use, easy to install easy to fit anywhere

- also can be useful at home or in garage, caravans, bungalow or in week-end house

- with digital input and a high voltage high current relay output

- 10-30V DC power supply

- With a short GSM antenna or with magnetic stand aerial

- Carrier independent module device with NanoSIM card

- One of the smallest and simplest modul on market

- Free downloader softver via PC's USB port

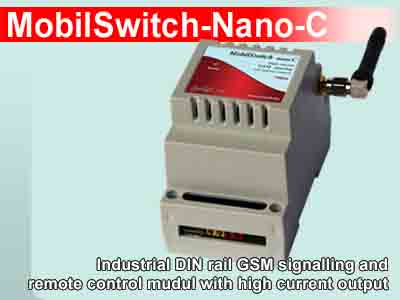

         The MobilSwitch-Nano-C module is a general, industrial-grade DIN rail GSM module, developed for remote signaling and remote control. It has a common digital input which is activated by voltage-less (or voltage-free) contact, and it has a single-circuit relay output. The module can be programmed with its own software from any PC or notebook. The device notifies the users via pre-configured SMS-s and voice calls, and it has an optional acknowledging function. The low current relay can be triggered by user-configured SMS-s or free voice calls based on caller ID recognition. The relays can be configured to operate in monostable mode (after switching on, the relays are turned off automatically within a time interval) or bistable mode. (switching the relays on and off are performed with separate commands) The MobilSwitch-Nano-C remote signalling can be programmed for maximum 4 phone numbers. It can be used as an independent GSM remote signaling, remote controlling device, either for industrial purposes or home applications, such as remote signaling and controlling security device. The power supply of the device has industrial input range of 10V-30V DC and it draws minimum 500mA current. The received SMS-s from the carrier can be forwarded to the user-configured telephone number, and the device operation can be checked with its built-in signal-of-operation function. The module has two variants: either with built-in dual-band antenna or RG-174 magnetic antenna with SMA connector.

       The MobilSwitch-Nano GSM remote control device can be fully programmed and configured with our universal downloader software called "Unified" via a microUSB cable. After powering on the device and plugging in the USB cable, all Windows operating systems (Windows XP, 7, 8, and 10) automatically recognize the the connected device. Our universal software handles and configures all products from the MobilSwitch, MobilArm, MobilTherm, MobilCar and MobilGate product families. The software automatically recognizes the type of the connected device and it shows its image.

       The device comes with an DIN rail enclosure and carrier-independent GSM module. Similar product are the built-in aerial variant MobilSwitch-Nano and with external magnetic antenna version is the MobilSwitch-Nano-a. Both version have low voltage low current relay. The devices come with our free configuration software that can be down-loaded from website: www.seasoft.hu



        The GSM remote control and remote signalling device requires +10-30V DC power supply with at least 500mA power supply connected to the red connectors which is equipped with polarity protection. The contact inputs are triggered with 0V, i.e. pulling them to ground. It is forbidden to connect more than +5V to the input in case they are driven by open-collector lines. The first relay output is a small-current "No"-type, the second relay output is small-current "Nc"-type. The maximum load of output cannot exceeds 1A at 48V. The input of the GSM signalling device are equipped with noise protection, however external voltage must not be applied to them. The inputs can be triggered with small-resistance (and preferably without contact-bouncing) contacts, switches and relays. The module is equipped with standard nanoSIM holder. The module can be programmed and configured with a microUSB cable.

GSM remote control
SMS remote control
GSM signalling

        The Windows operating systems (Windows XP, 7, 8, and 10) automatically recognize the connected device and it shows its image. The status of the device, including the carrier information, status of the inputs and outputs can be queried by pressing the "Get Status" button. All the user parameters can be edited, however it is advised to keep the original format and change the factory values only when necessary. Please fill the configuration values with care and do not use accented or special characters. All telephone numbers must be given in the international telephone number format. The edited configuration can be saved to a file and loaded whenever necessary. The configuration data can be downloaded to and read from the device. The software displays a notification when the configuration was successful and shows an error message notification upon download or read failure..

Unified downloader
MobiSwitch Nano

       A memória tartalom igény szerint szerkeszthető, a táblázat alapján kitöltött és elküldésre kerülendő üzenetek köre szabadon bővíthető vagy szűkíthető. A táblázat üzenetei kitölthetők más nyelven is. Egyetlen korlátozás létezik: a 32 karakternél nem hosszabb ékezet nélküli memória tartalmak szabálya. A konfigurációs tábla minden eleme távolról is módosítható SMS-sel bármely dedikált telefonszámról. Minden memória helynek van száma, neve, tartalma, és dimenziója. Minden memória helyhez és funkcióhoz magyarázat is tartozik az alsó Magyarázat ablakban. A felhasználó a Mező szerkesztése ablakban csak a kurzor alatt lévő memória hely tartalmát tudja változtatni. A memória tartalma lehet szám vagy betű a memória jellegétől függően. Ha a jellegéből fakadóan az karakteres, akkor annak tartalma lehet tetszőleges nyelvű, de nem tartalmazhat ékezetes karakterek.

SMS jelző
Riasztás SMS-sel
ipari GSM kapcsoló


       The device can be programmed remotely with fixed-format SMS commands. For example the query command : #?*

Response SMS:    MobilSwitch-Nano-C Ver:1.22 T-MobileH Rssi:4 Ubat:13.0V A:1, 00:10:00 Panik button:0 Siren:0

Where:



MobilSwitch-Micro-C Device name
Ver:1.22 Firmware
T-MobileH Provider
Rssi:4 Signal quality
Ubat:13.0V Power supply's voltage
A:1 Modul is active(1) or passive (0)
00:10:00 Time of temporary disarmd
Panik button:0 Status of input
Siren:0 Status of output


All memory cell of module can be readed or written by SMS started from a dedicated user's mobile phone.


Specifications:



Range of power supply:
10-30 Vdc
  Frequency:
800/900/1800/1900 MHz
Lowest current consuption:
30 mA
  Communication:
SMS, voice
Current consuption when relay on:
41 mA
  Max. voltage on input:
+6 V max.
Mean consuption (24hours):
60 mA
  Aerial connector:
SMA
Max. conpuption:
180 mA
  Ambient temperature
-30 ... +70 C


Vertical size of DIN rail enclosure:

90 mm

Vertical size with aerial:

119 mm

Vertical size of magnetic aerial:

110 mm

Horizontal size of enclosure:

54 mm

Enclosure Z size:

66 mm
